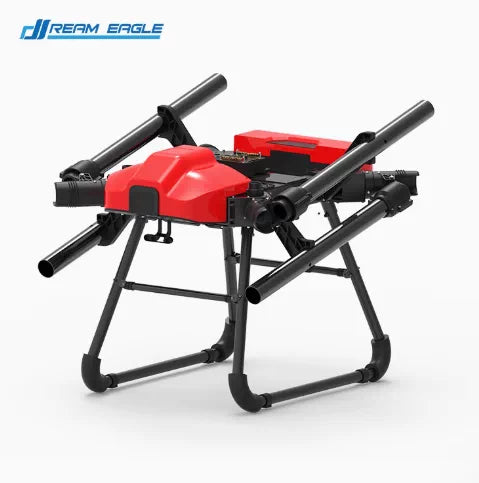

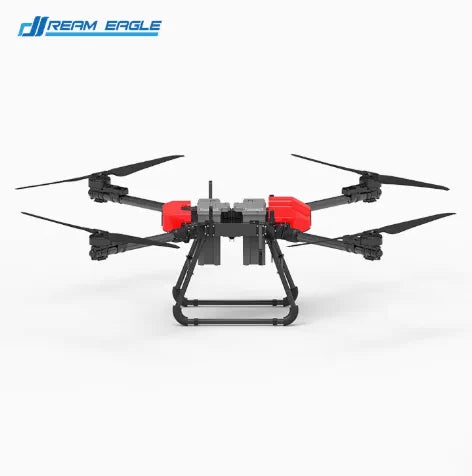

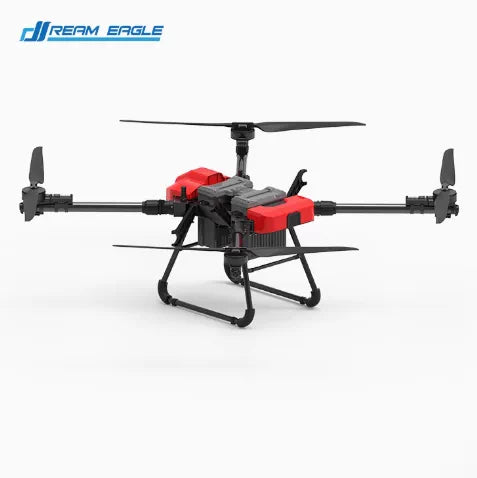

YS Series Industry Application Unmanned Aerial Vehicles (Customized Models）

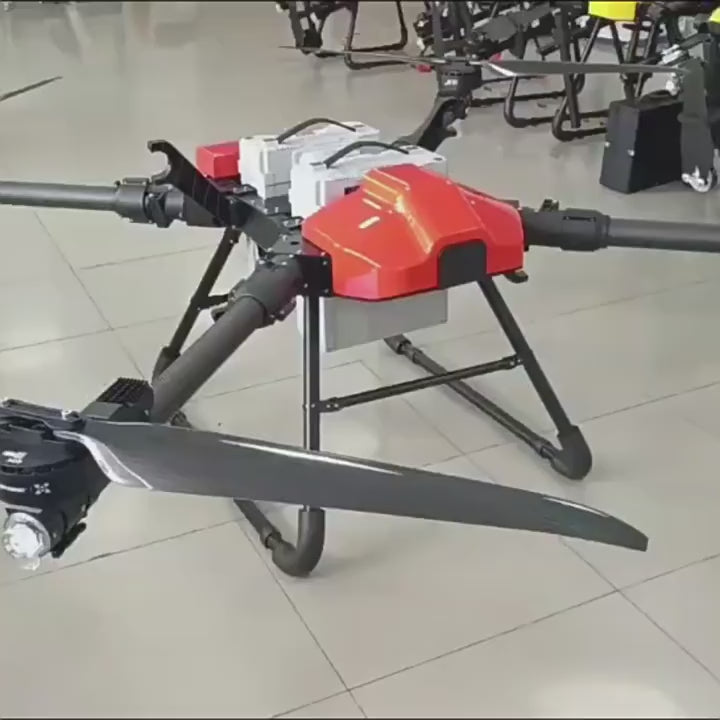

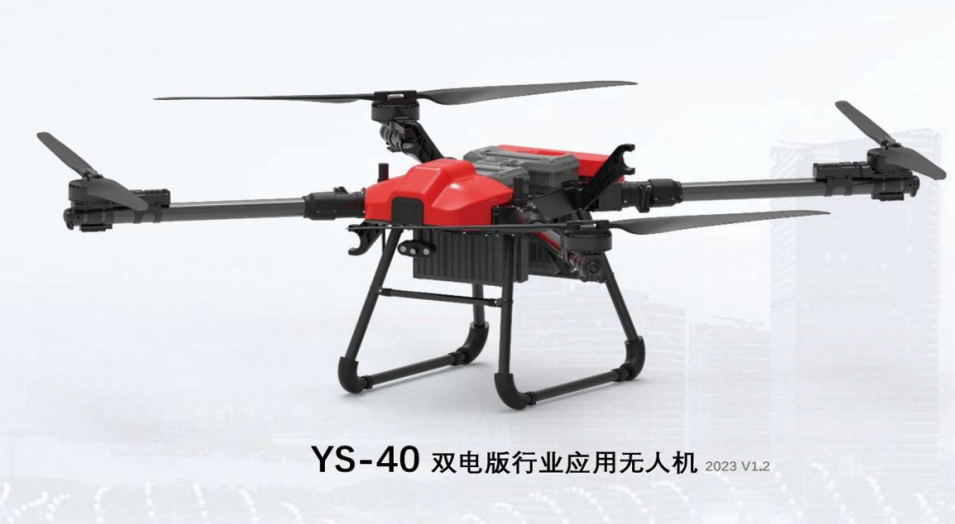

The YS-40 features a brand-new structural design, modularized body, excellent compatibility, a fast disassembly dual battery design, a front and rear folded quad-rotor design, and can be equipped with obstacle avoidance radar and ground protection radar for expansion. The front-mounted FPV first-person view provides clear image feedback. It is powered by a 48-inch propeller with strong power. The overall design is lightweight, compact in size, has a large load capacity, and is easy to carry for operation. The maximum payload is 40kg, suitable for transporting and mounting supplies, transporting saplings, and high-altitude dropping equipment in multiple industries.

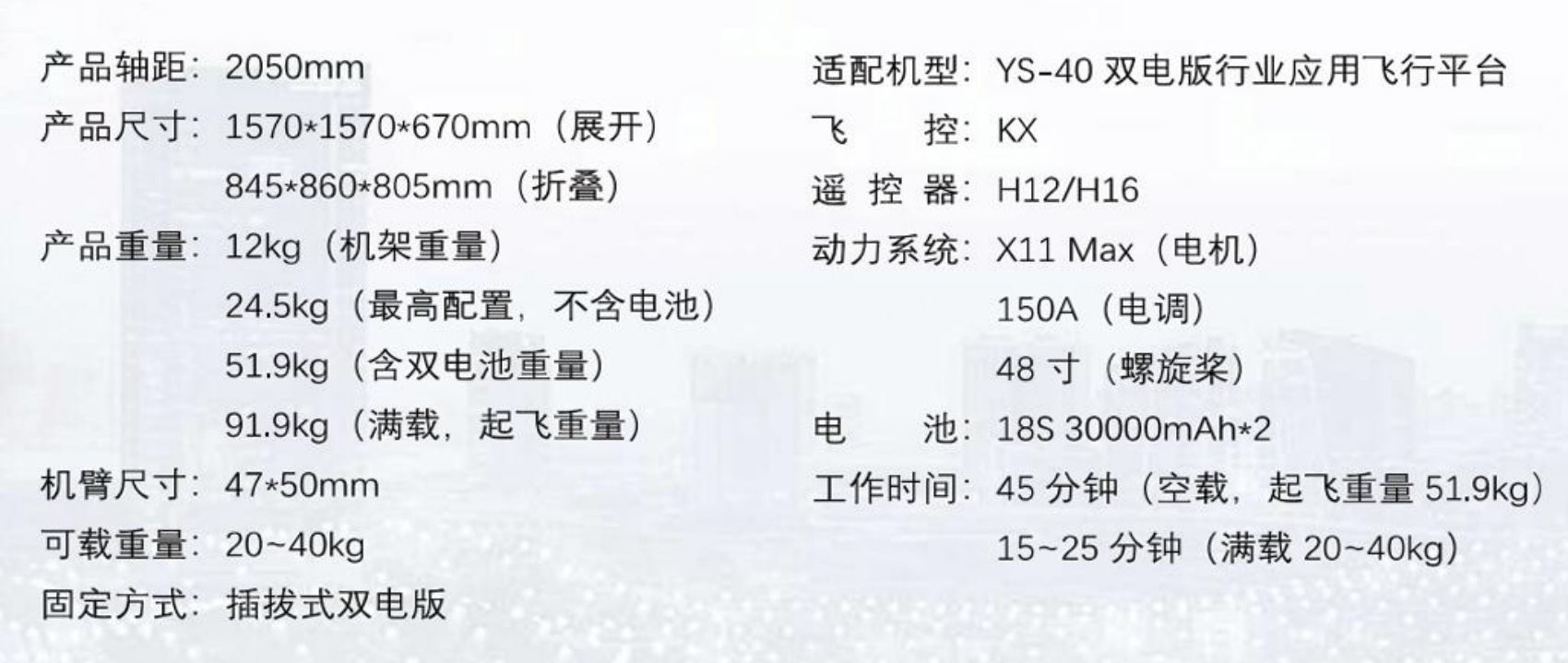

Product wheelbase : 2050mm

product size : 1570*1570*670mm(unfold)   845*860*805mm (fold)

product weight : 12kg(Rack weight)   24.5kg(The highest configuration, without battery)
                  51.9kg(Including the weight of dual batteries)   91.9kg(Full load, takeoff weight)

Arm size : 47*50mm

Carrying capacity : 20~40kg

Fixing method: pluggable dual electric version

Adaptation model: YS-40 dual-electric version of the industry application flight platform

flight control system : KX

remote control : H12/H16

dynamical system : X11Max(motor)   150A(ESC)   48寸(propeller)

battery : 18S 30000mAh*2

working hours : 45minute(Empty load, takeoff weight51.9kg)   15~25minute(full load20~40kg)

YS-40全新结构设计，机身模块化设计，超强兼容性，搭载快速拆卸式双电池设计，采用前后对折四旋翼设计，可搭载避障雷达和防地雷达拓展，前置FPV第一视角提供清晰的图像反馈，搭载48寸螺旋桨动力强劲，全身轻量化设计，体积小，大载重，便于携带作业。最大有效载重40kg，适用于运输挂载物资，运输树苗，高空抛投设备等多行业

The product can be produced with personalized customization.
