YS series industrial application drones (mass production models)

X6-20 transport UAV stable professional version, using wrap-around six-rotor folding, equipped with suspended battery and transportation platform, fuselage center connection fixing method, effectively improving the overall frame strength, dustproof and waterproof, using the X9Plus power system is powerful and powerful, the whole body is lightweight design, simple control, and multiple modes of transportation operations. The maximum payload is 22kg.

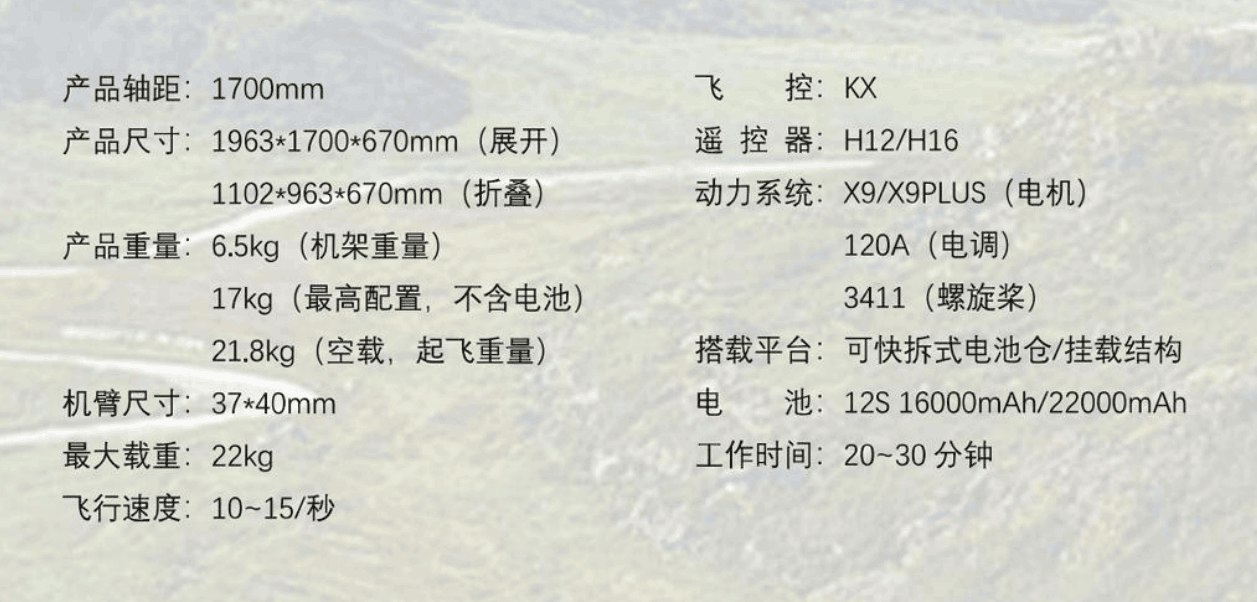

Product wheelbase : 1700mm

product size : 1963*1700*670mm(unfold)   1102*963+*670mm (fold)

product weight : 6.5kg(Rack weight)   17kg(Highest configuration, without battery)    21.8kg(Empty load, takeoff weight)

Arm size : 37*40mm

maximum load : 22kg

flight speed : 10~15/second

flight control system : KX

remote control : H12/H16

dynamical system : X9/X9PLUS(motor)   120A(ESC)   3411(propeller)

carrying platform : Quick-disassembly type battery holder/Mounting structure

battery : 12S 16000mAh/22000mAh

working hours : 20~30minute

X6-20运输无人机稳定专业版，采用环抱式六旋翼折叠，搭载悬挂式电池及搭载运输平台，机身中心连接固定方式，有效提升整体机架强度，防尘防水，使用X9Plus动力系统强劲有力，全身轻量化设计，操控简单，多种模式运输作业。最大有效载重22kg。

The product can be produced with personalized customization.
