X4-50 Dual-Electric Agricultural Drone (Customized Model)

The X4-50 features a brand-new structural design, modularized body design, excellent compatibility, a quick-insertion and quick-extraction water tank, dual battery design, and a front-back folded quad-rotor design. The water tank is equipped with a dual water pump shunt fast-disconnect module that is hung at the bottom. It can be expanded with obstacle avoidance radar and ground detection radar. The front and rear FPV first-person view provides clear image feedback. The X13 has powerful power， a lightweight overall design， a small size， a large load capacity， and is easy to carry for operation. The maximum effective load capacity volume is 50L.

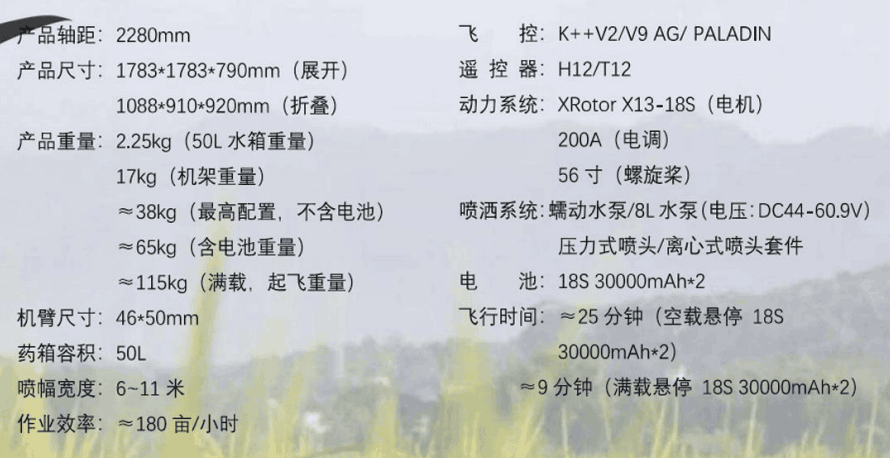

Product wheelbase : 2280mm

product size : 1783+1783*790mm(unfold)   1088*910*920mm (fold)

product weight : 2.25kg(50LWeight of the water tank)   17kg(Rack weight)   ≈38kg(Highest configuration, without battery)   ≈65kg(Weight including battery)   ≈115kg(Full load, takeoff weight)

Arm size : 46*50mm

Capacity of the medicine box : 50L

Spray width : 6~11m

Work efficiency :≈180 mu per hour

flight control system : K++V2/V9 AG/PALADIN

remote control : H12/T12

dynamical system : XRotorX13-18S(motor)   200A(ESC)   56寸(propeller)

sprinkling system : Peristaltic water pump/8Lwater pump(voltage:DC44-60.9V)   Pressure spray head / centrifugal spray head kit

battery : 18S 30000mAh*2

flight time : ≈25minute(No-load hovering 18S 30000mAh*2)   ≈9minute(Fully loaded hover 18S 30000mAh*2)

X4-50全新结构设计，机身模块化设计，超强兼容性，搭载快速插拔式水箱，双电池设计，采用前后对折四旋翼设计，水箱底挂双水泵分流快拆模块，可搭载避障雷达和防地雷达拓展，前置+后置FPV第一视角提供清晰的图像反馈，X13动力强劲，全身轻量化设计，体积小，大载重，便于携带作业。最大有效载重容积50L

The product can be produced with personalized customization.
